Vertical Turning Lathes
About VTL Work
Vertical turning lathes (VTL) are machines that orient the spindle in the vertical plane in a fixed position. The workpiece then spins, moving up and down to put it in line with the cutting head. These machines are less complex than horizontal lathes. This machining option is best for pieces that focus on shaping a single side of a part. While not suited for high-production runs, they excel at taking heavy cuts on medium and large parts.
These large ram-type machines are also sometimes called vertical boring machines (VBMs), an indexable tool turret head distinguishes the two.
VTL Capabilities
Large metal plates, brake disks, pump housings, aircraft parts, heavy equipment parts, energy field parts, and sinking dies are excellent examples of what a vertical lathe can do. If there is any question of the workpiece sagging, having the solid base ensures that doesn’t happen, keeping the part square and true.
We can easily handle all standard metals, producing parts for a variety of purposes. This includes soft metals like aluminum, brass, copper, and harder metals like different grades of steel, titanium, and specific alloys.
A Reliable Partner
Coleys was built on the belief that true partnerships are critical to success. We have built lifelong relationships for over 50 years by producing high-quality machined CNC components.
Trust that Coleys’ experienced team will design custom solutions that meet your budget and deadline without budging on standards. Eliminate the risks and costs associated with replacing vendors by choosing an accomplished partner in Coleys.
Vertical Lathe Components
- Headstock assembly - drives the spindle of the lathe
- Chuck - sits at the end of the spindle and holds the workpiece as it rotates
- Jaws - securely holds the workpiece in the chuck
- Ways z-axis - drives the cutting tools up and down to perform cutting processes
- Ways x-axis - The rail that moved the workpiece in and out, positioning the cutter closer or farther away from the center.
- Workpiece - the piece being machined that clamps into the jaws of the chuck
- Multi-tool turret - holds multiple cutting tools for different operations and switches them out automatically
- Cutting tool - takes cuts from the workpiece to form the final part
- Bed - the heavy cast iron base underneath the work area that the chuck is attached to.
The Advantage of Vertical Turning
There are certain applications where a vertical turning lathe machine has an advantage over other machining solutions. We take advantage of this to produce better parts and more efficient machine pieces.

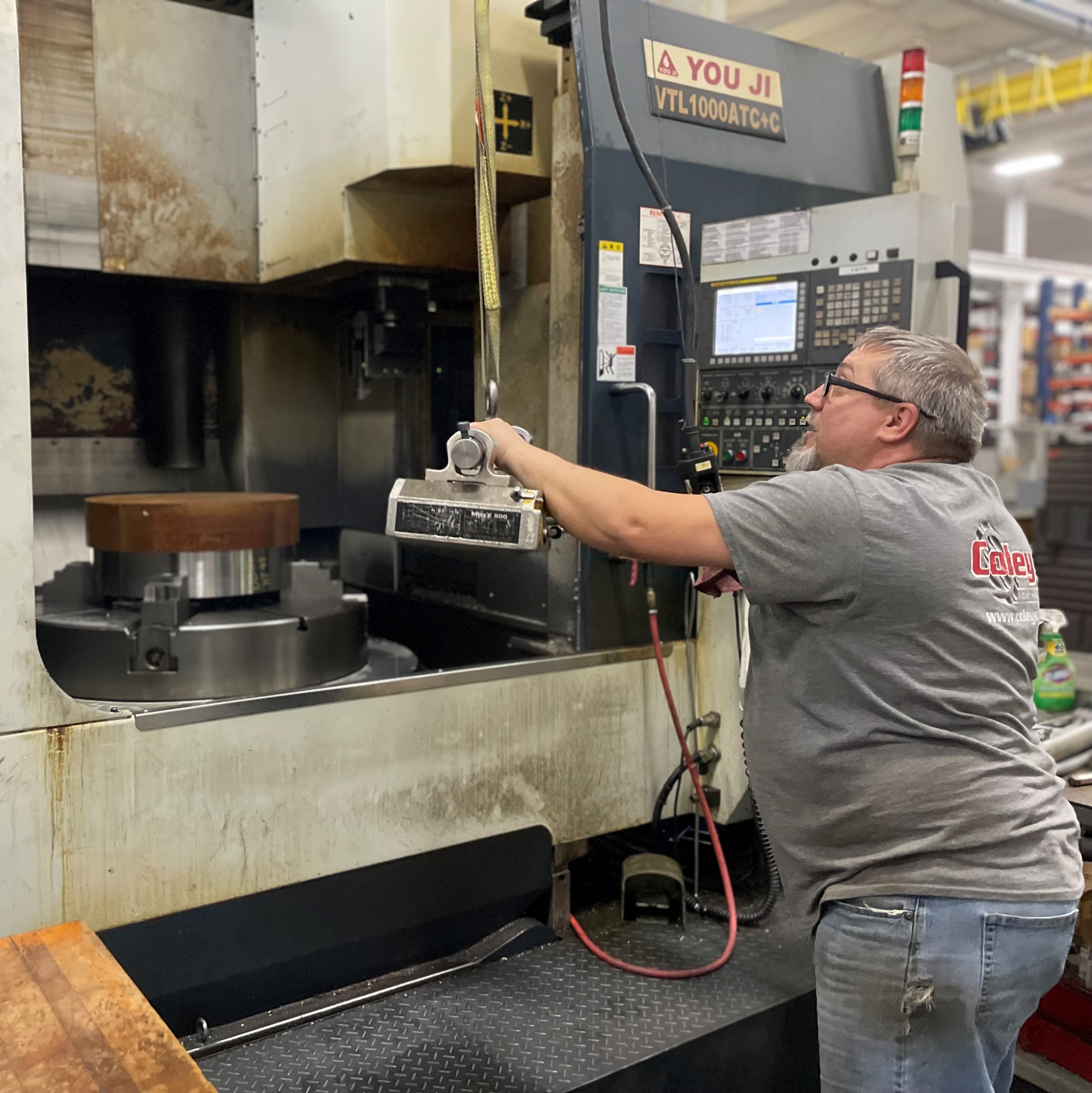

Heavy workpieces are easily set up and held in place when machining. Gravity works with the machine to keep the part in place, and minimal clamping is required compared to other processes. Our machines can accomplish this while taking up less space than a comparable horizontal lathe would.
VTLs that have the main spindle load and unload themselves are able to multitask when machining and producing chucked parts, reducing machining times and turnaround for our customers.
Our vertical lathes accommodate bigger and heavier castings within our shop than a horizontal lathe would. We are able to take heavier cuts safely without messing up our tolerances. This cuts down on cycle times because we can more aggressively remove material. We can control the final surface finish from semi-finished to fine, giving our clients excellent results right off the machine without any grinding required.
The rotating table supports the workpiece. A precision ram drives the x-axis and delivers the cutter to the desired location.
Turning Processes
Turning Processes our machines can handle:
- Boring
- Cutting
- Drilling
- Facing
- Internal Forming
- Knurling
- Necking
- Parting
- Shoulder Facing
- Threading (external, internal)
- Turning (contour, form, taper, straight)
Our VTL capabilities also include a wide array of turning operations. One example is contour turning, the process of creating a contoured shape from the tool’s path. We handle form turning to feed shaped tools radially into the lathe as well as tapers at whatever angle is required. We also provide straight turning to maintain a perfect cylinder at the desired dimension is no issue for our VTLs.
Applications
Vertical turning lathes find widespread use in various industries where precision and reliability are critical. Some of the applications we use our vertical turning machines for include:
- 4th Axis Machining
- 3D Profiling
- Casting Machining
- Bore Repair
- Valve Repair
- Part Mapping
- Press Plate Machining
- Production Runs
